DUX Model TD-18 Low Profile Teledumper

Custom box size to suit different ore weight available.

OVERALL DIMENSIONS
Length. ..........................................8 435 mm ................27’ 8”
Width ............................................ 2 235 mm ..................7’ 4”
Height over box sides ................... 2 285 mm ..................7’ 6”
Height over canopy ...................... 2 440 mm ..................8’ 0”
TURNING RADIUS @ 45°
Inside. ............................................3 660 mm ................12’ 0”
Outside ......................................... 6 325 mm ................20’ 9”

TECHNICAL SPECIFICATIONS

Engine
Make and model ........... Cummins QSB 6.7 with Electronic
....................................... Management System
Derated power ............. 164 kW (220 HP) @ 2300 RPM
Cylinders ....................... 6
Aspiration ..................... Turbocharged, after-cooled
Displacement ................ 6.7 L ........................408 in3
Starter ........................... 24-volt
Air intake cleaner ......... Donaldson 2-stage dry type with service gauge
Exhaust system............. Catalytic purifi er with integrated silencer and
....................................... Firwin fi re jacket
Cooling .......................... Liquid
Emission standard ........ Meets EPA Tier 3, Euro Stage IIIA
Transmission with Integrated Torque Converter
Make and model ........... Dana SOH HR32000 series, single stage integrated
........................................torque converter with fl ex plate drive
Speeds ...........................4 in forward and in reverse
Axles
Make and model ........... Dana SOH 16D 2149 with high traction differential
....................................... and POSI STOP brakes on all 4 wheel ends
Tires
– Bridgestone 16.00R25, 2*, VRLS tubeless, radial
Brakes
Service and ................... 4-wheel POSI-STOP totally enclosed multi-disc,
emergency/parking ...... liquid cooled, Spring Applied Hydraulically
....................................... Released (SAHR) with accumulator back-up
Automatic Brake .......... Applies brake in case of engine failure or pressure
Applicator (ABA) ........... drop in torque converter
Steering
– Articulated frame hydraulic power steering with pilot monostick control
– Double acting steering cylinders (2)
– + 45o steering angle each way for a total of 90o
Oscillation
– +10o center of oscillation for a total of 20o
– Large sized, heavy-duty roller bearing for minimum maintenance and a
smooth ride, 4-wheel ground contact guaranteed
Frames and Pins
– Articulated heavy-duty frames made to withstand the high impact and
torsional stress associated with mining application
– Frames come with fi ve-year unlimited hour guarantee
– Large high tensile alloy steel pins in replaceable anchor bushings

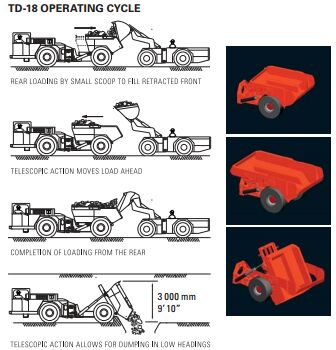

Teledump Body
– Extra heavy-duty two-section design with double acting telescopic dump
cylinders (2) and ejector cylinders (2) made from impact wear-resistant
alloy steel plates that are reinforced, prolongs service life substantially
– Supported on rugged tipping frame, telescopic action guided by heavy-
duty bottom roller bearings (2) that run along hardened tracks and extra
heavy-duty adjustable/replaceable slide arrangements (2) on top of box
Operator Compartment
– Side seated for maximum visibility and bidirectional operation
– Heavy-duty adjustable air suspension seat with arm rests and
retractable seat belt
– Shock mounted compartment floor for maximum comfort
– All controls and gauges located within easy reach and view of operator
Hydraulic System
– Hydraulic pilot stick steering control
– Heavy-duty double acting protected steering cylinders (2) with hard
chrome plated stems
– Heavy-duty double acting two-stage fully protected telescopic dump
cylinders (2) with hard chrome plated stems
– Heavy-duty ejector cylinders (2)
– Heavy-duty PTO driven gear-type pumps driven from torque converter
– Suction fi lter
– Inline high pressure fi lter with service gauge
– ¾” inside diameter and over pressure hoses that are four-spiral wire
braid and have crimped hose end swivel fi ttings
Tank Capacities
Fuel ................................ 227 L ............60 US gallons
Hydraulic oil .................. 212 L .......... 56 US gallons
Brake cooling oil ........... 95 L ............25 US gallons
Electrical System
– 24-volt negative ground
– 75 amp alternator with integrated sealed voltage regulator
– Main electric cut-off switch
– Heat resistant, waterproof, sealed electric PMA wire harness
– Sealed junction box and sealed stainless steel instrument panel box
with multi-stem connectors
– Semi-automatic circuit breakers
– Front (2), rear (2), and all-directional (1) LED high-intensity lights
– Heavy-duty batteries (2)
– Signal horn and audible, adjustable back-up alarm
